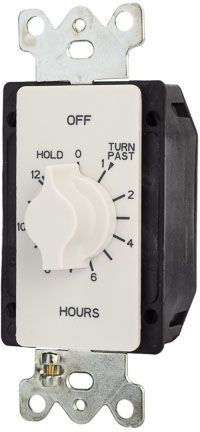

Tork A512HHW In-Wall Spring Wound Timer

Variable Timing Twist Knob for Time ON Setting; Time ON Lengths from 15 Minute to 12 Hour Vary by Model; Hold Feature Some Models have Position for Constant On; Easy Set No Adjustments; Just Wire and Go; Easy Wiring No Neutral Required; Great for Retrofit Use as Single or in Multi-Gang Box with No De-Rating; Switch Type SPST 2 in 1 Contacts Wire as SPST also can Wire Normally on and Countdown While Off

Specifications:

Time Cycle: 12 Hr
Operation Type: With Hold
Switch Type: SPDT, SPST
Contact Current Rating: 20 Ampere at 125 VAC 50/60 Hz (Resistive/Inductive), 10 Ampere at 250/277 VAC 50/60 Hz (Resistive/Inductive), 7 Ampere at 125 VAC 50/60 Hz (Tungsten)
Contact Power Rating: 1 HP at 125 VAC, 2 HP at 250 VAC (Motor)
Operating Temperature: 32 to 122 Deg F
Color: White
Mounting: Wall
Application: Whole House Fans, Indoor/Outdoor Lighting, Bathroom Fans and Lights, Self Storage
Approval: UL (Canada and US)
