5-GMI-250-1200-58

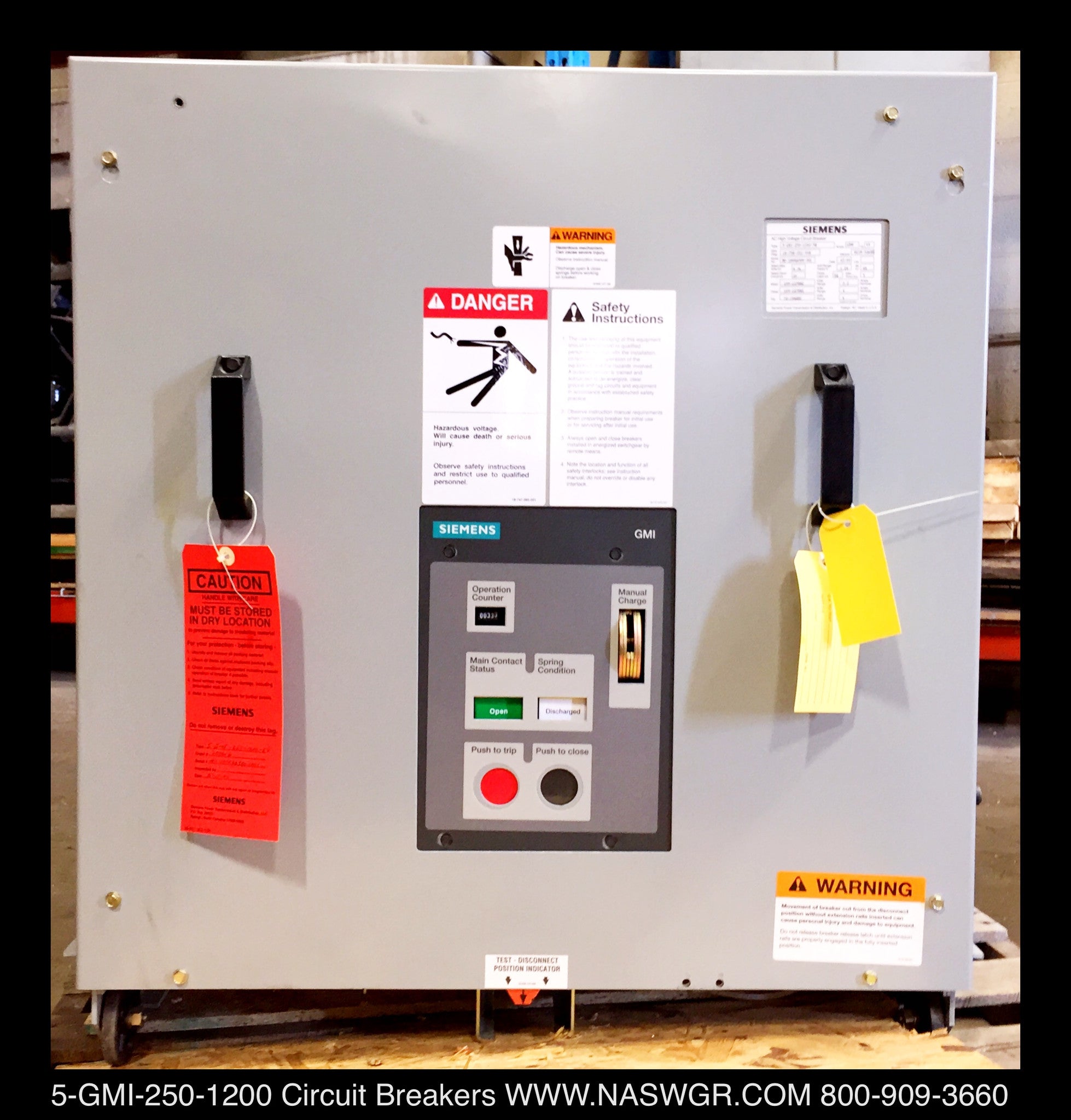

Siemens 5-GMI-250-1200-58 AC High Voltage Circuit Breaker
1200 Amp
Instr. Bk. No. SGIM-3268D
Type: 5-GMI-250-1200-58
Rated Max. Volts KV 4.76
Rated Short Circuit kA 29
Cont. curr. A 1200
Close & Latch 58kA
Volt Range Factor K 1.25  Full wave Lightning Impulse Volt BIL  kV 95
50/60 Hz.

Operator Data
Motor: 104-127 VAC           Range Amps Nominal 3.3
Close: 104-127 VAC           Range Amps Nominal 4
Trip Coil 70-140 VDC    Range Amps Nominal  4
Wiring Diagram 17-758-351-408

Siemens Bottles
VS 17006
F-Nr. 018359

Breaker is in excellent condition

Estimated weight: 425 lbs. Please contact us for shipping information.

Item must ship via freight on a pallet.

Each used 5-GMI-250-1200-58 is Cleaned, Tested with Report and Backed by Our 1 Year Warranty.
Hi-Potted, Inspected and Electrically Tested with a Typed Report
